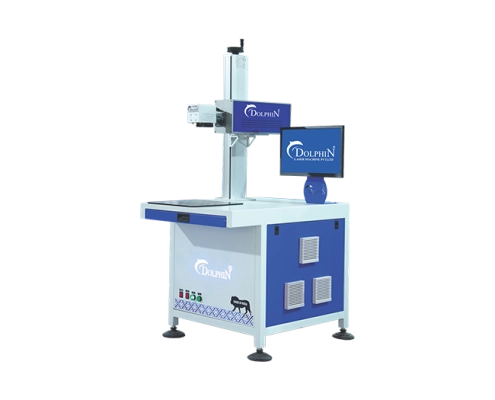

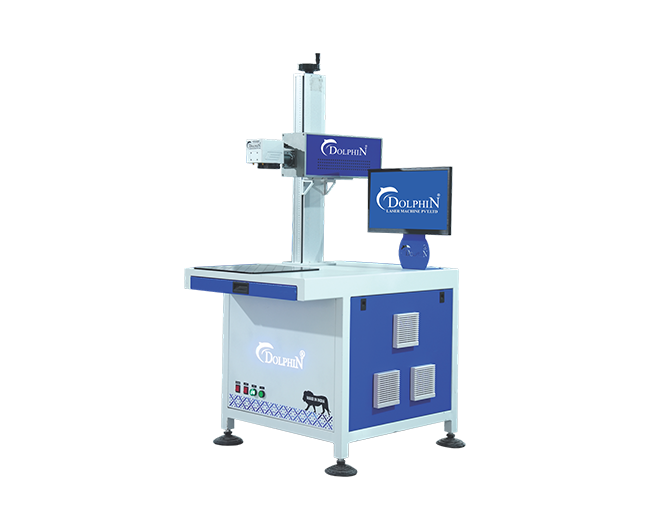

Co2 Laser Engraving Machine
Specification
| Model | 1. Wood Pecker | 2.Catwalk |
|---|---|---|
| Engraving Area | 150×150, 300×300 MM | 450×450, 600x 600 MM |
| Laser Tube | 30, 60 W | 80,100 W |
| Laser Source | Metal Tube With Air Cooled / Glass Tube With Water Cooled | |
| Power Adjustment | 1 To 100% | |
| Engraving Accuracy | <0.01< /td> | |
| Operting System | Win 7/8/10/11 | |
| Interface | Udisk, Usb, Ethernet | |
| Supported File | PLT, DXF, BMP, JPG, GLF, PNG. | |
| Working Volt | Single Phase 220-230V/50HZ (Earthing Req) | |
| Optional Attachment | Rotary Device / Moving Table | |
| Dimension (L X W X H) | 3 x 2 x 4 feet | 6 x 2 x 5 feet |
| Weight | 125kg | 300kg |
Application
